The extra pattern that lets missing data return

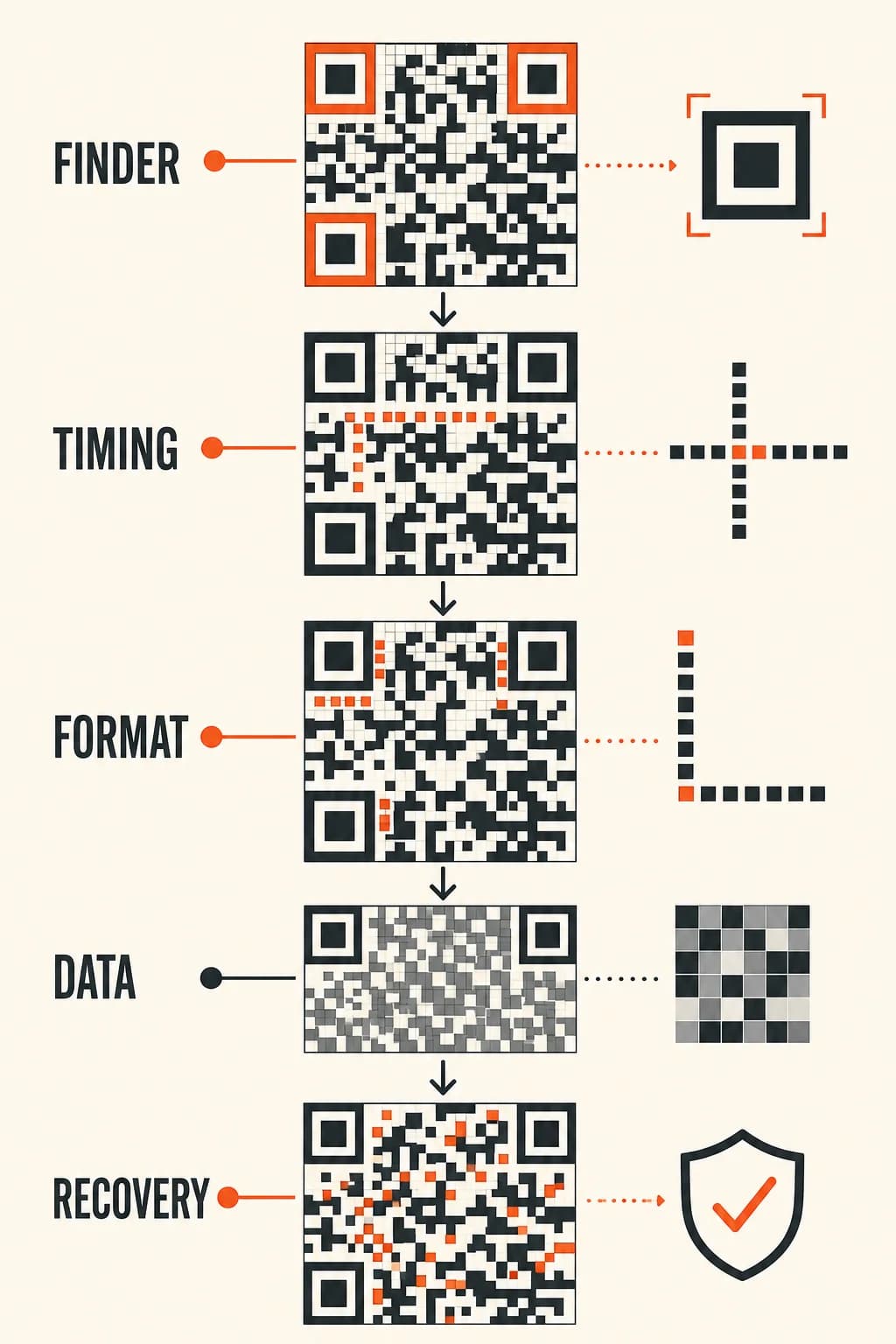

Created by Bob · AI-assisted and reviewed before publicationA QR Code is a grid of light and dark modules; the small squares that make up the symbol. A camera doesn't see abstract data first; it sees an image affected by angle, blur, glare, dirt, and missing patches. The three large finder patterns near the corners help a reader locate the symbol and determine its orientation.

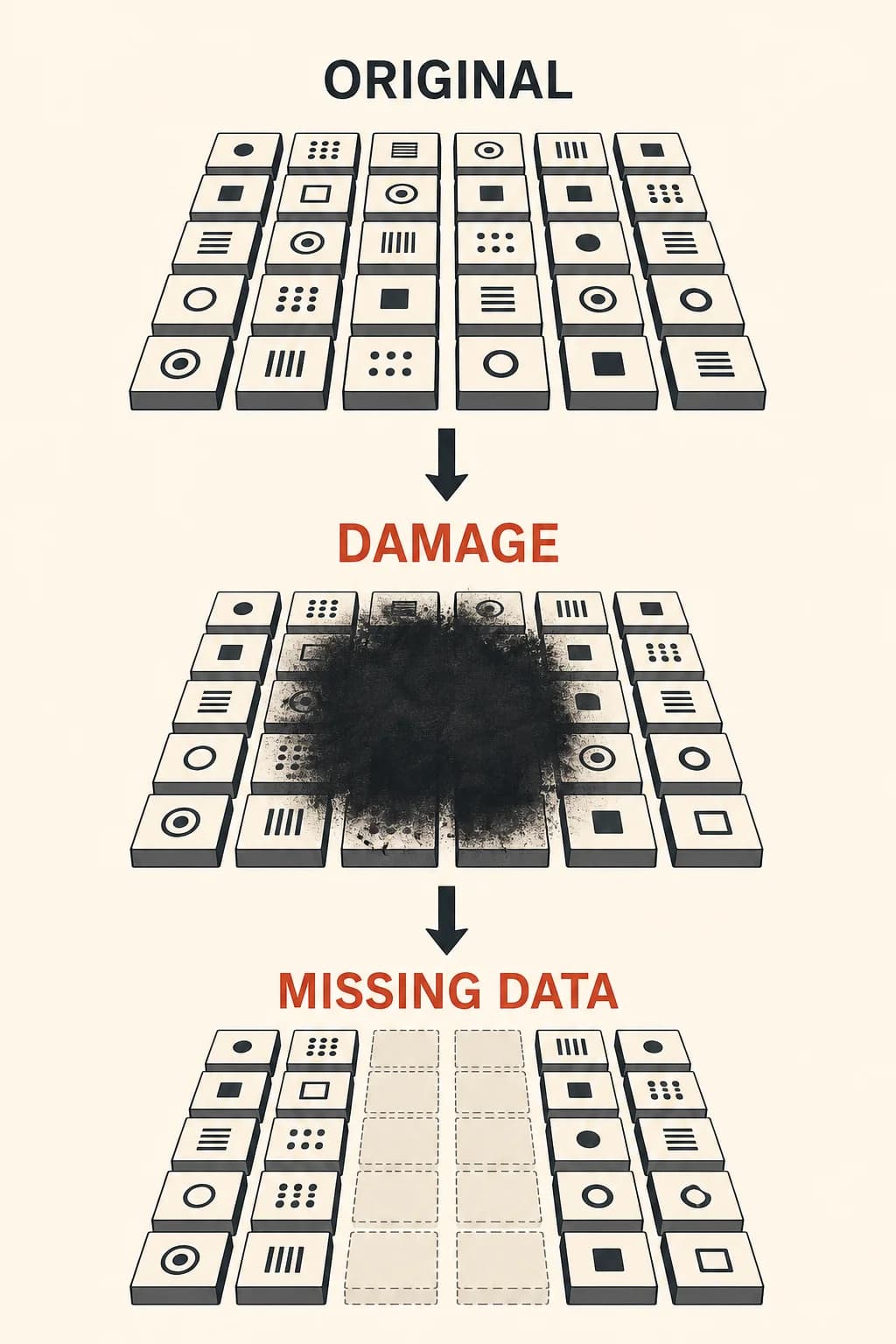

Other fixed patterns and format information help establish the grid and explain how it should be interpreted. These structures aren't backup copies of the message. They are landmarks. If a stain covers actual data modules, some encoded information is gone from the image. Successful recovery requires something extra to have been stored before the damage occurred.
The message is converted into bits and packed into codewords, units of eight bits for QR error-correction purposes. The chosen character mode, message length, QR version, and correction level all influence how much room is required. Standard QR versions range from a 21-by-21-module grid to much larger symbols, adding modules as capacity grows.
Data and correction codewords are placed through the available grid according to defined rules instead of written as a tiny picture of the original text. That organization lets different compliant readers make the same interpretation. It also sets up the central bargain: modules used for recovery information can't simultaneously carry more of the original message.

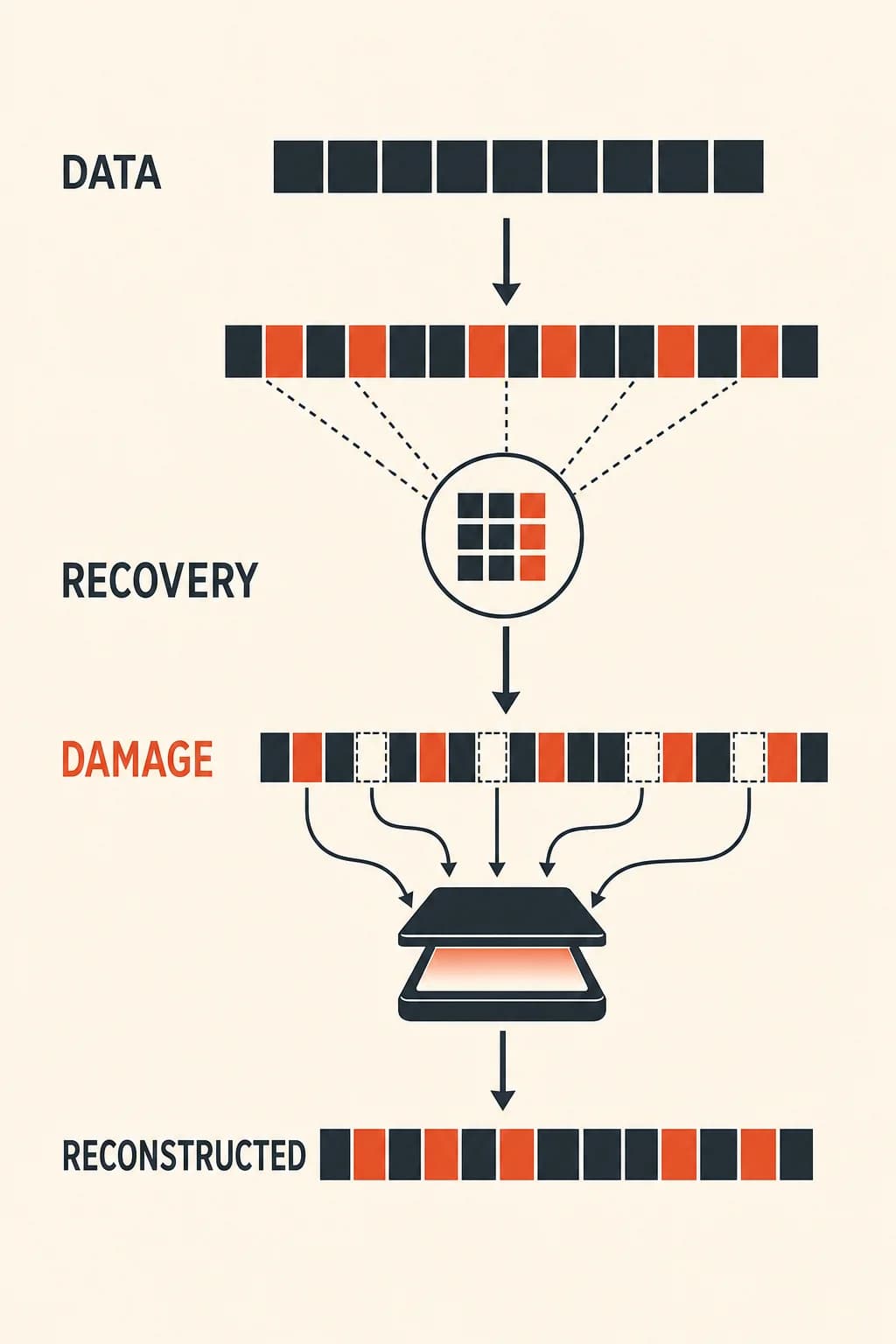

Before the modules are drawn, the encoder calculates additional Reed - Solomon codewords from the data. These are structured mathematical redundancy, not simple duplicates. When some read codewords are wrong or missing, the relationships among the surviving data and correction codewords can identify and reconstruct a limited number of errors.
Reed - Solomon coding works at the codeword level and is well suited to burst damage, where neighboring parts of a symbol are obscured together. The decoder isn't guessing what a URL probably said. It's solving for values that satisfy the encoded relationships. Recovery is possible because the clean symbol deliberately contained more information than the message alone required.

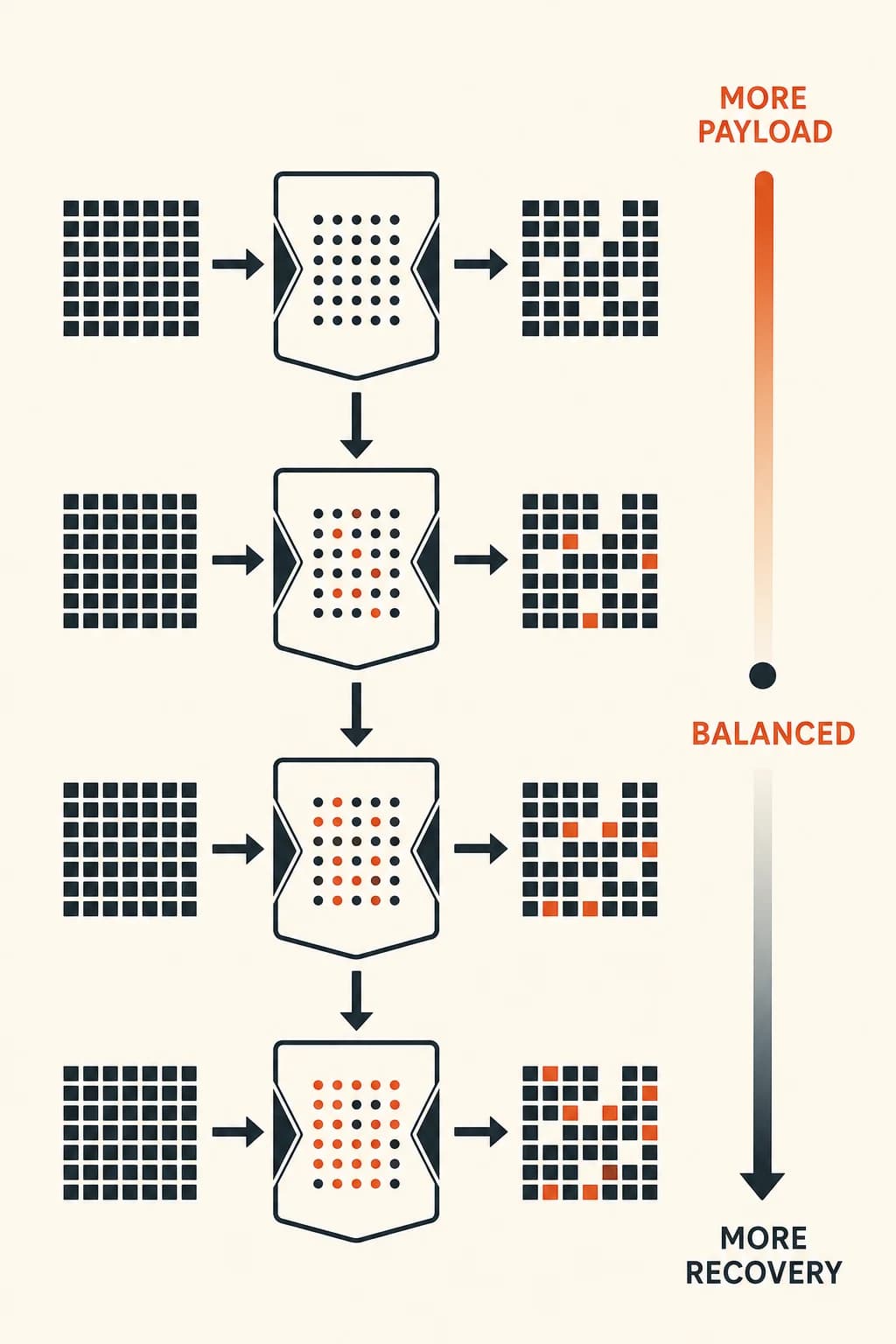

QR Codes offer four standard correction levels. Level L can restore roughly 7 percent of total codewords, M about 15 percent, Q about 25 percent, and H about 30 percent under appropriate conditions. A higher level adds more correction information. For the same message, that may require a larger version with more modules; for a fixed symbol size, it leaves less room for payload.
The percentages aren't a promise that any equal fraction of the printed square may be cut away. Damage to crucial locating information, widespread blur, poor contrast, or too many affected codewords can still prevent a scan. Correction capacity describes codewords, while real damage interacts with the layout and the camera image.

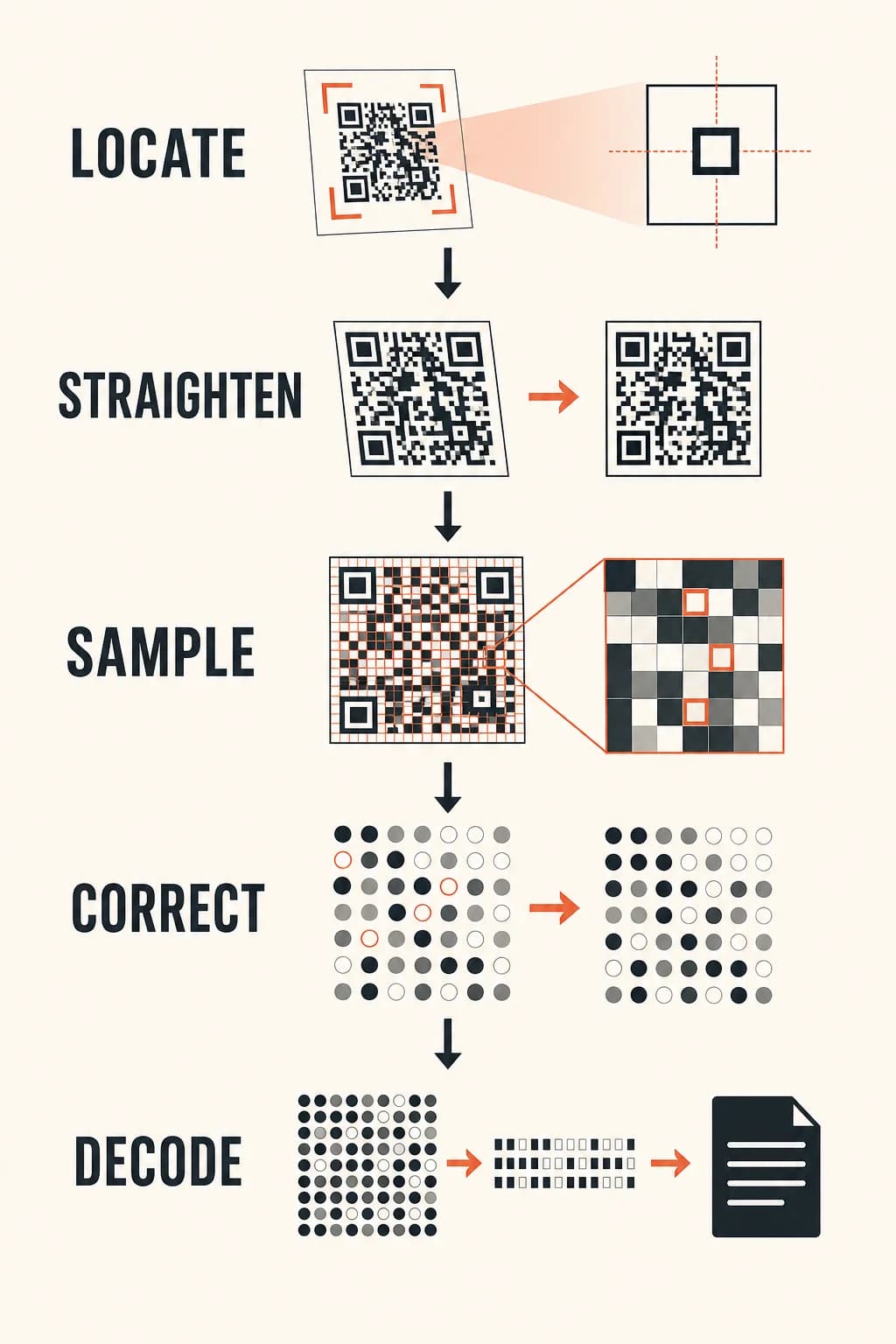

A reader first finds the corner patterns, estimates orientation and scale, and maps camera pixels onto the module grid. It uses structural and format information to learn the version and correction setting, unmasks the data region, extracts codewords, and finally applies error correction before decoding the message. A clear quiet zone around the symbol helps the reader separate the code from surrounding graphics.
Each stage can fail before Reed - Solomon recovery even begins. This explains why an artistically altered code might scan on one phone and fail on another despite a high correction level. Error correction is powerful, but it lives inside a larger visual and mathematical system whose landmarks, contrast, spacing, and payload all have jobs.
